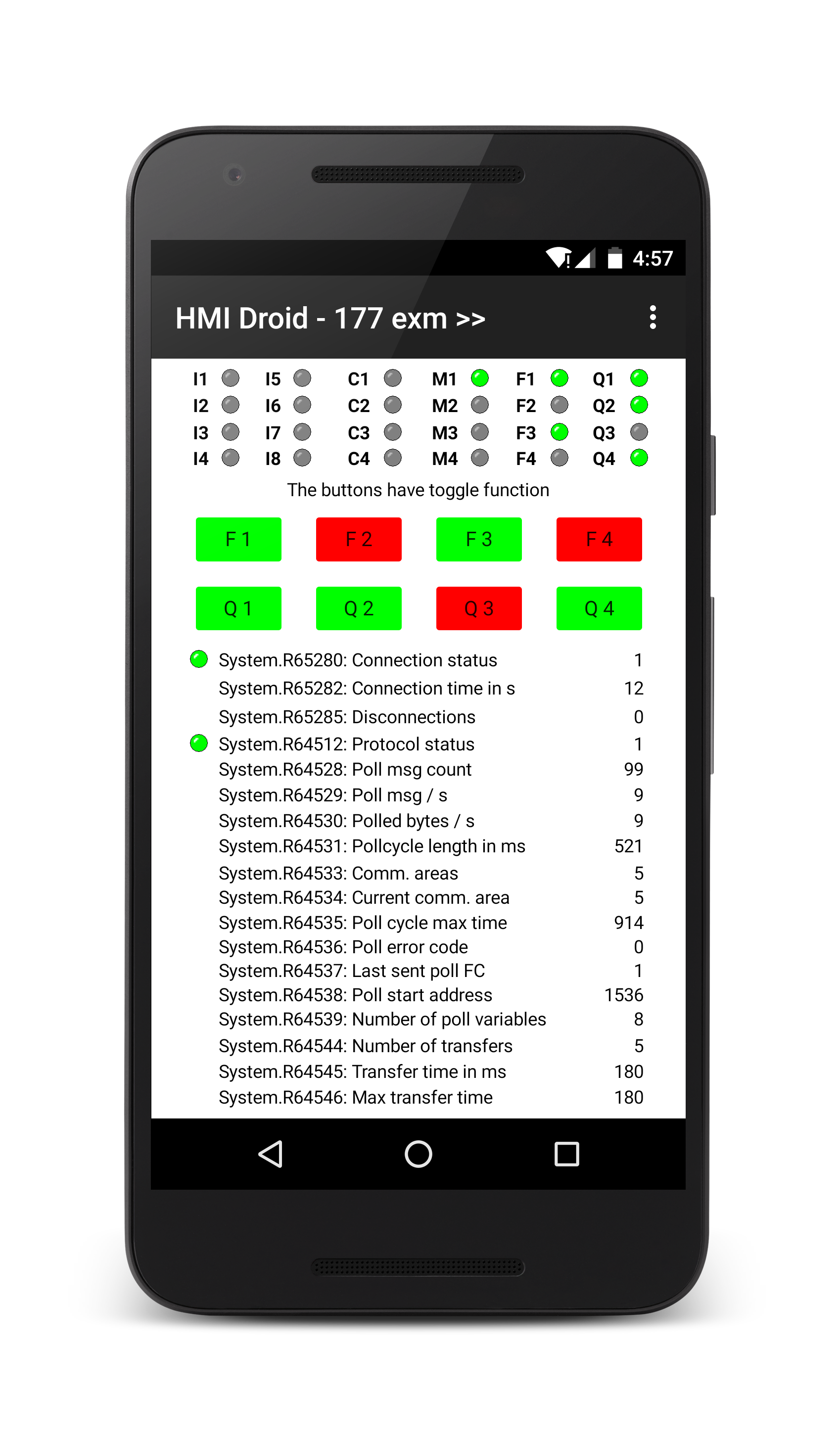

Ready-made panels e.g. for IO test of xLogic/RievTech Mini PLC EXM-12 and for Andon-systems.


HMI Droid Studio for Windows

Free development tool with test run feature for creating and editing panels (pages) on a Windows PC. Scroll down for version history and Beta-versions with more features.

download

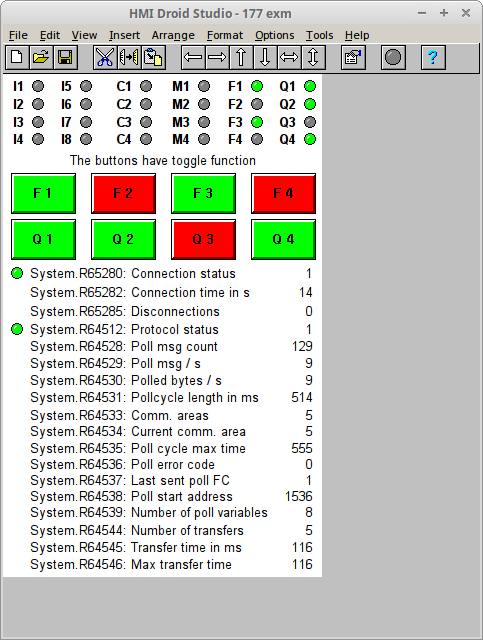

HMI Droid Studio on Windows PC           HMI Droid on Android device           Odrid HMI on iOS device
Always make a backup copy of the panel files (*.led) before changing to a newer version of the development tool.



HMI Droid Studio V6.7.5.58 ( Beta-version 2017-11-06 )

SHA256: 563698cccfa361e311a083719413e159d2d9207d00c7fa9831cabf5096869e28

New in HMI Droid Studio version 6.7.5.58
  • Missing dialog resource for Panel properties has been restored. (The dialog resource is missing in builds 52 to 56.)
  • Improved function when resizing selected objects with regard to "snap to grid".
To use panels (pages) edited with version 6.7.5.58 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.58 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.56 ( Beta-version 2017-11-03 )

SHA256: b6cc344676f833089842bbc336b142c064254ca32a349230b786bb4ac00fa485

New in HMI Droid Studio version 6.7.5.56
  • Bug fix (experimental) for Copy/Paste problem in Windows 10 Version 1709 Build 16229.
To use panels (pages) edited with version 6.7.5.56 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.56 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.55 ( Beta-version 2017-11-02 )

SHA256: 9746db606a875b17bc2eeb6c7b8e33815349d41a450778ec07b8f80794166494

New in HMI Droid Studio version 6.7.5.55
  • English language in object dialogs.
To use panels (pages) edited with version 6.7.5.55 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.55 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.54 ( Beta-version 2017-10-31 )

SHA256: d87e9177d2e48281931d1c4ad74f25547bb3bbd7e74800a6eefdd7fc8ff8fc84

New in HMI Droid Studio version 6.7.5.54
  • Bug fixes for random beeping sounds in version 6.7.5.52 and 6.7.5.53.
To use panels (pages) edited with version 6.7.5.54 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.54 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.53 ( Beta-version 2017-10-25 )

SHA256: f6936aa8770d7228fd23811cf163ab69213faded77fcf4053f089e21b58ab91a

New in HMI Droid Studio version 6.7.5.53
  • Property dialogs for the Date and Time objects with selectable "Fit width and height" option. Unselect this option to manually control the objects size to prevent truncation of date and text on some target devices.
To use panels (pages) edited with version 6.7.5.53 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.53 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.52 ( Beta-version 2017-10-23 )

SHA256: 52ddbd71b4f8d4845b2e489908feaeac7e98516de2e08834e853454ad6b96831

New in HMI Droid Studio version 6.7.5.52
  • New command in the Format menu for selecting fonts not available in the PC that HMI Droid Studio is installed on. This can be used for selecting fonts with Chinese character sets (e.g. "Heiti SC") on iOS-devices.
To use panels (pages) edited with version 6.7.5.52 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.52 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.51 ( Beta-version 2017-10-04 )

SHA256: 84b46b94569fcad8a6ec4d104c1654ae37cc471d7e3ac93d651fadc0a990f723

New in HMI Droid Studio version 6.7.5.51
To use panels (pages) edited with version 6.7.5.51 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.51 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.50 ( Beta-version 2017-05-30 )

SHA256: 559d89abfd62727aa952216801a673c5a30c4c099879dcd3f24079487be218b5

New in HMI Droid Studio version 6.7.5.50
  • Grid color can be selected.
  • The object selection handles uses the same color as the grid.
  • When selected objects are moved using the cursor keys and the Shift key is held down for moving in large steps, the grid settings for x and y are used as increment to preserve the objects alignment with the grid.
  • Improved support for the PHYS format in the Test panel mode.
To use panels (pages) edited with version 6.7.5.50 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.50 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.48 ( Beta-version 2017-03-25 )

SHA256: 5c25483c0ebd4c1f17c2610fdfa9e90b6450b6e1512696d75631acb608bf8d83

New in HMI Droid Studio version 6.7.5.48

Bugfixes in the protocol driver for Siemens S7 Communication (ISO-on-TCP).

To use panels (pages) edited with version 6.7.5.48 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.48 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.46 ( Beta-version 2017-03-23 )

SHA256: 8b967c068e293ddf3a6bba1a67634a68003d9192535fe9ec3be32ae96da3bbb8

New in HMI Droid Studio version 6.7.5.46

Adaptations for running HMI Droid Studio on Linux using WINE.

Bugfixes.

To use panels (pages) edited with version 6.7.5.46 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.46 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.45 ( Beta-version 2017-03-17 )

SHA256: b70ed01d779b61bc35be52b6614cf93635c73ee7beb7f48627a17c398ab97b9b

New in HMI Droid Studio version 6.7.5.45

Support for Siemens S7 Communication in the Test panel mode.

To use panels (pages) edited with version 6.7.5.45 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.45 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.44 ( Beta-version 2017-03-07 )

SHA256: 4a9bf1cc5d2195e9884ddeec4e4fc90c1c75ae2ee719505f3f16172b5cbe7021

New in HMI Droid Studio version 6.7.5.44

The Modbus Slave Id can be changed in the Test panel mode using objects connected to the system registers.

To use panels (pages) edited with version 6.7.5.44 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.44 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.43 ( Beta-version 2016-11-24 )

SHA256: 4d0a4cb4597994f7997fa6c026af7ef8a307818f3c035a6c1def64ddd01da3e0

New in HMI Droid Studio version 6.7.5.43

The LED-object can read boolean data from the Objects variable area.

Bugfix for PHYS-format using the two's complement option in Test panel mode.

To use panels (pages) edited with version 6.7.5.43 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.43 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.42 ( Beta-version 2016-10-19 )

SHA256: facf6d0149e238129bc850daa1c6c4de264fb612d155b99ebf09963eca1a07f6

New in HMI Droid Studio version 6.7.5.42

New command: Invert selection.

Bugfixes.

To use panels (pages) edited with version 6.7.5.42 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.42 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.41 ( Beta-version 2016-09-20 )

SHA256: 9b2a38b2f4d55d702effe8dde43cabc3da67eb81a3e3c20c23ab81e45046cfb5

New in HMI Droid Studio version 6.7.5.41

Improved validation of parameters in the dialog for LED objects.

To use panels (pages) edited with version 6.7.5.41 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.41 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.40 ( Beta-version 2016-06-14 )

SHA256: 86ca654ed5625b1cdffeee44cc96bf825085d2aaf2a9a40e919cef989272f68f

New in HMI Droid Studio version 6.7.5.40

The Date and Time objects are somewhat wider to solve problem with truncated text.

Bugfix for the Number and Currency floating point formats.

To use panels (pages) edited with version 6.7.5.40 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.40 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.39 ( 2016-06-03 )

New in HMI Droid Studio version 6.7.5.39

Bugfix in the plausibility check for the Modbus Slave Id.

Variables in the local variable area can be manipulated as bits.

To use panels (pages) edited with version 6.7.5.39 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.39 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.38 ( 2016-05-15 )

New in HMI Droid Studio version 6.7.5.38

Bugfixes for PHYS-format with Max < Min and test panel mode.

To use panels (pages) edited with version 6.7.5.38 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.38 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.5.37 ( Beta-version 2016-04-27 )

New in HMI Droid Studio version 6.7.5.37

New variable area Objects for connecting different objects to each other.
The Object id property for the Numeric variabel object can be set.

To use panels (pages) edited with version 6.7.5.37 of HMI Droid Studio, you need version 1.7.5.70 or higher of the HMI Droid (Android) or version 1.0.4 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.5.37 can not be opened in HMI Droid Studio version 6.7.4.36 again.



HMI Droid Studio V6.7.4.36 ( 2016-04-19 )

New in HMI Droid Studio version 6.7.4.36

Bugfix for Test panel mode and Slider Bar using negative variable values.

To use panels (pages) edited with version 6.7.4.36 of HMI Droid Studio, you need version 1.7.4.62 or higher of the HMI Droid (Android) or version 1.0.3 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.4.36 can not be opened in HMI Droid Studio version 6.7.1.4 again.



HMI Droid Studio V6.7.4.35 ( Beta-version 2016-04-10 )

New in HMI Droid Studio version 6.7.4.35

Bugfix for the format PHYS and Test panel mode.
A negative slope for the format PHYS can created be entering a value for Max that is less than the value for Min.

To use panels (pages) edited with version 6.7.4.35 of HMI Droid Studio, you need version 1.7.4.62 or higher of the HMI Droid (Android) or version 1.0.3 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.4.35 can not be opened in HMI Droid Studio version 6.7.1.4 again.



HMI Droid Studio V6.7.4.34 ( Beta-version 2016-03-15 )

New in HMI Droid Studio version 6.7.4.34

Image buttons.
Formatting of floating point and hexadecimal numbers.
Variable area for constants.
Password fields.
Document information in panel files.
Timestamp in panel files.
Settings for S7 Rack and Slot in the communication parameteres.
Hyperlinks.
Bugfixes.

To use panels (pages) edited with version 6.7.4.34 of HMI Droid Studio, you need version 1.7.4.62 or higher of the HMI Droid (Android) or version 1.0.3 or higher of Odrid HMI (iOS).

A panel (page) edited with HMI Droid Studio version 6.7.4.34 can not be opened in HMI Droid Studio version 6.7.1.4 again.



HMI Droid Studio V6.7.3.1 ( Coming soon!! )

New in HMI Droid Studio version 6.7.3.1

The Test Panel function can use 64,512 (20,000) Holding registers and 65,535 (20,000) Input registers.
New system registers for last sent Modbus FC for polling and transfer.
Maximum length for pathname for panel files increased from 128 to 256 characters.
Plausibility check of the communication parameters before start of the Test panel mode.
Bugfixes.



HMI Droid Studio V6.7.1.4 ( 2015-12-08 )

New in HMI Droid Studio version 6.7.1.4

Bugfixes. Improvements in the Test Panel function.


To use panels (pages) saved with version 6.7.1.4 of HMI Droid Studio you need at least version 1.7.1.55 of HMI Droid.



HMI Droid Studio V6.7.1.3 ( 2015-10-31 )

New in HMI Droid Studio version 6.7.1.3

Bugfix for vertical Bar Indicator.


(To use panels (pages) saved with version 6.7.1.3 of HMI Droid Studio you need at least version 1.7.1.55 of HMI Droid.)



HMI Droid Studio V6.7.1.2 ( 2015-10-30 )

New in HMI Droid Studio version 6.7.1.2

Bugfix for Radiobuttons in Test panel mode.


(To use panels (pages) saved with version 6.7.1.2 of HMI Droid Studio you need at least version 1.7.1.55 of HMI Droid.)



HMI Droid Studio V6.7.1.1 ( 2015-10-13 )

New in HMI Droid Studio version 6.7.1.1

New format, TIME_OF_DAY for numeric variables.
The protocol Siemens S7 (ISO_on_TCP) can be chosen in the communication parameters for the panel (page).
Validation of the entered data block number in the object's dialogue boxes.


(To use panels (pages) saved with version 6.7.1.1 of HMI Droid Studio you need at least version 1.7.1.55 of HMI Droid.)



HMI Droid Studio V6.6.4.1 ( 2015-06-09 )

New in HMI Droid Studio version 6.6.4.1

LED-objects can be displayed as rectangles and of any size e.g. for Andon-systems.
Background color for panels (pages) can be selected in the background dialog.
By holding down the shift key while moving the selected objects with the cursor keys, you can move objects in large steps.

(To use panels saved with version 6.6.4.1 of HMI Droid Studio you need at least version 1.6.4.52 of HMI Droid.)



HMI Droid Studio V6.6.3.3 ( 2015-05-29 )

New in HMI Droid Studio version 6.6.3.3

Test panel feature now supports Modbus RTU.

(To use panels saved with version 6.6.3.3 of HMI Droid Studio you need at least version 1.6.3.50 of HMI Droid.)



HMI Droid Studio V6.6.3.2 ( 2015-05-26 )

New in HMI Droid Studio version 6.6.3.2

New variable area (AI) for analog inputs e.g. for reading Modbus input registers.

Test panel feature making it possible to test panels (pages) without first having to transfer them to an Android-device. Test will be closed after 15 minutes. Dialogs for changing/entering numerical or string values are not fully implemented yet but most other featureas are working the same way as on a real Android-device.

(To use panels saved with version 6.6.3.2 of HMI Droid Studio you need at least version 1.6.3.50 of HMI Droid.)



HMI Droid panel designer V6.6.0.1 ( 2015-02-24 )

New i version 6.6.0.1

Word Swap for 32-bit variables in the Modbus protocols can be set per panel.
Poll-intervall can be set per panel for saving data traffic and battery.
(To run the panels saved with Version 6.6.0.1 requires at least version 1.6.0.47 of HMI Droid.)



HMI Droid panel designer V6.5.0.1 ( 2015-01-13 )

New i version 6.5.0.1

New object radio button for displaying and modifying numerical variables.
Ability to select if a background image to be displayed or not.
(To run the panels saved with Version 6.5.0.1 requires at least version 1.5.0.46 of HMI Droid.)



HMI Droid panel designer V6.4.0.1 ( 2014-12-09 )

New i version 6.4.0.1

New communication protocol Modbus RTU class 1.
New object checkbox for displaying and modifying logical variables.
Possibility of automatic return to the start panel after some time of inactivity.
(To run the panels saved with Version 6.4.0.1 requires at least version 1.4.0.45 of HMI Droid.)



New i version 6.3.0.1

New object Bar Indicator.
New object Line Chart.
Ability to display variable designations for numeric variables and input fields without opening the dialog.
(To run the panels saved with Version 6.3.0.1 requires at least version 1.3.0.44 of HMI Droid.)



New in version 6.2.0.2

Slider Bar object added to insert menu.



New in version 6.2.0.1

New object Slider Bar that can show and change the value for numeric variables in the controller.
(To run the panels saved with Version 6.2.0.1 requires at least version 1.2.0.43 of HMI Droid.)



New in version 6.0.0.12

New data type (format) for variables that can display content in Siemens Step 7 STRING data type when the Siemens Fetch/Write protocol is used.
Length of the string must be specified and shall comply with the maximum length of the string in the controller.
(To run panels saved with Version 6.0.0.12 minimum version 1.0.0.36 of HMI Droid is required.)



Ready-made panels

Panel for IO test of WiFi PLC Easy EXM-12

iotest easy exm.led

The panel displays the status of the first digital inputs and outputs, as well as diagnostics for communication.

IP-address and port number must be set on your Android or iOS-device or entered in the communication settings for the panel in HMI Droid Studio.

IO test Easy EXM-12

          IO test Easy EXM-12



Example panel for Andon-system

andon example.led
andon example.png

A simple Andon-system for 10 stations. Download panel (page) and background image, modify to fit your needs.

Andon-system



S7 and STEP 7 are trademarks of Siemens AG.



IDEA-Teknik
Långelanda-Stala 764
SE-472 93 SVANESUND
SWEDEN
                  Telefonnummer

                  e-mail
info@idea-teknik.com

Back to Top
